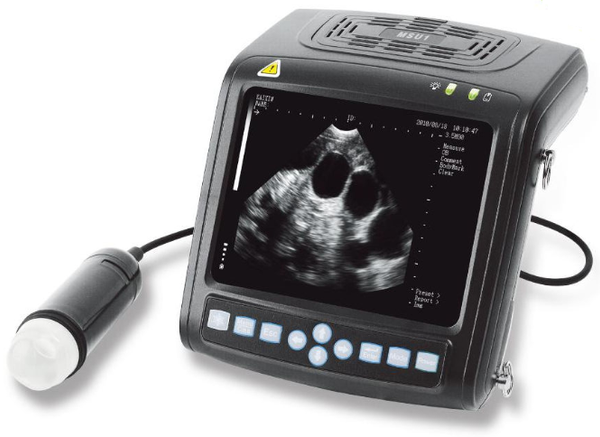

The MSU1 is a hand-held reproduction ultrasound scanner used primarily on pigs and other farm animals.



Porcine (pig, swine)

Ovine (sheep, goat, llama)

Canine (dog)

Feline (cat)



Screen: 5.7”

Wrist design


Easy to carry

Convenient examination

Neck Strap


Outdoor sunshade

High resolution colour LCD screen with high brightness, high contrast, clear image

Backfat ruler for easy to intuitive backfat measurements.



Unique window radiator to avoid farmhouse cross infection.


Display modes

B,2B,4B, B/M, M.


OB Measurement

EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.



Export to Excel format for easy user-friendly management of pregnancy records

Optional mouse for easy operation

High speed USB port support high-capacity U disk.

Menu operation

Language: English & Chinese

5 kinds Magnification.

Maximum display depth is 200mm.
256 frames permanent storage
Eight pseudo colours (including B/W).
Dual-mode TV output: PAL / NTSC

Connects to video recorder and video glasses.
Freeze or unfreeze image by shutter release.
Adopted AC and DC to supply power.

Includes high-capacity lithium battery providing more than 200 minutes of operating time


Standard Configuration

Main unit

Carry Case

Neck strap



Video goggles

Probe introducer

Backfat Probe


Warranty: 12 months


For more information and to confirm specifications, please contact us to request a brochure.
