Chison Eco1V

The Chison Eco1V is a popular entry level portable Black & White ultrasound machine.



Applications: General Veterinary applications in Small Animal & Reproduction in Large animals



Features

12” LED Screen – expandable to 15”

Screen Tilt: 0-30°

Display Modes: B, B/B, 4B, M, B/M

Grey Scale 256 levels

Zoom: PIP zoom & Pan Zoom

i-Image (Image optimization software)

THI (Tissue Harmonic Imaging)

SRA (Speckle Reduction Algorithm)

Compound Imaging



Specifications

Multiple Beam forming Technology (Enhance Frame Rate, Improve Image Resolution)

240mm Max Scanning Depth (depending on the probe type)

2.5MHz - 11MHz Probe Frequency (depending on the probe type)

Archives Management: Patient information management, Patient images record, Patient exam report.

Power Supply: AC 240V-100V, 50Hz-60Hz

Software packages: General measurement, OB, Obstetrics, GYN, Urology, Abdomen, Cardiac B/M mode, Vascular, Small parts, Orthopaedic, Pediatrics.



Standard Configuration

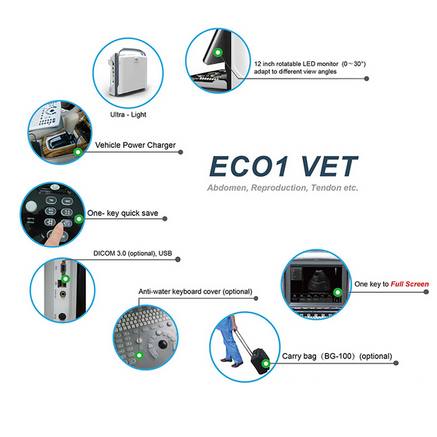

ECO 1 standard configuration includes:

Main unit with 12” LED monitor & 1 Probe Connector

Mode: B/2B/4B/M/B&M

Compound Imaging, i-Image, Chroma, THI

Full Screen Display Mode

Probe for your application



Optional

2nd Probe connector

DICOM 3.0

Water-proof keyboard cover

Carry Case

Printer

Trolley

Built-in Battery

Carry Bag



Probe Options

C3-A     3.5MHz Convex probe

MC3-A  3.0MHz Micro-Convex probe

MC5V-A 5.0MHz Micro Convex probe MC5V-A

MC6-A  6.0MHz Micro-Convex probe (Pediatrics)

L7M-A   5.3 - 10.0MHz Linear probe

L7S-A   5.3 - 11.0MHz Linear probe

L7V-A   7.5 MHz Linear Rectal Probe L7V-A

R7-A     7.5Mhz Trans-Rectal probe R7-A



Warranty: 24 months, Optional: 3 years, 5 years

For more information and to confirm specifications, please contact us to request a brochure.
