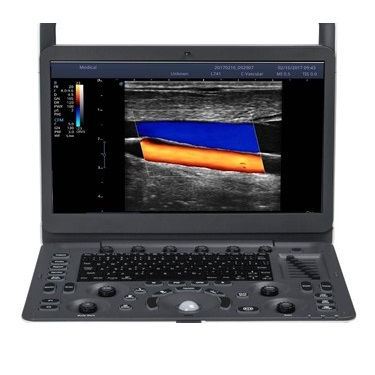

SonoScape E2

The SonoScape E2 is a real time portable Colour Doppler Ultrasound machine that reaches beyond your expectations due to its compact configuration and automatic calculations to enhance your diagnostic confidence.

Applications: General Abdo, OB/GYN, Vascular, MSK, Small Part, Paediatric, Cardiac, Urology, Physio, POC

Standard Configuration

Standard Hardware included:

E2 main unit with 15.6" High Resolution LED color monitor

Two transducer connectors

USB 2.0/Hard Disk 500 G

Rechargeable Battery

Mains Power Adaptor

Carry Bag

Probe of choice

Standard Software included:

Imaging modes: B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW

Dynamic Multi-beam Technology

Tissue Harmonic Imaging, Pure Inversion Harmonic Imaging, Tissue Specific Imaging

Spatial Compound Imaging

Widescan: Trapezoid Imaging

Convex Extended Imaging

μ-Scan: 2D speckle reduction technology

PW Auto Trace, TEI Index, Auto: Auto optimization for B/ M/ PW/ CW

TGC: Time gain compensation, Duplex, Triplex, B/C dual live

Zoom, Standby Mode, Show Gallery, 2D Steer, Auto IMT

Biopsy Guide

DICOM 3.0

Optional Hardware

Mobile Trolley

Footswitch

Large Capacity Battery

B/W video printer: SONY UP-D897/SONY UP-X898MD

External DVD

Bluetooth Controller

Optional Software

Color M Mode

Continuous Waves Mode

Tissue Doppler Imaging

Anatomic M Mode

LGC: Lateral gain compensation

SR Flow

Vis-Needle

B Mode Prospective Saving

2D Panoramic Imaging

Wifi and ECG Module

Probe Options

Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm

Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm

Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz

Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm

Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm

Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm

Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz

Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm

Convex array C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm

Convex array 6CT-A (Intra-operative), 3-15MHz/ R40mm

Warranty: 24 months, Optional: 3 years, 5 years

TGA Registered: Yes

For more information and to confirm specifications, please contact us to request a brochure.
