Chison SonoBook 8

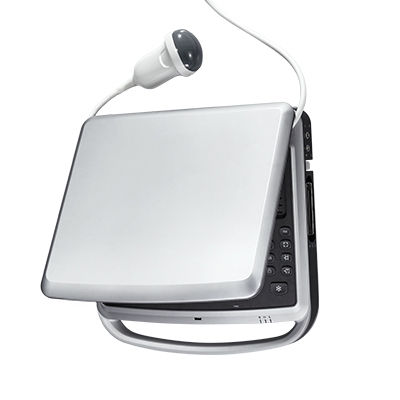

The Chison SonoBook 8 is a compact Laptop Colour Doppler Ultrasound Machine with a robust alloy casing design tailored for users who need maximum mobility but also demand powerful functions.



Applications: OBS/GYN, MSK, Vascular, Physio, General, Cardiology, Urology.



Features

15” LED Screen

120° rotation

Laptop

Frequency Range 1.5MHz – 18MHz

192 elements high density probe



Specications

ULTRA

Ultra-Light, Ultra Slim, Ultra Compact

Ultra-Deep penetration >30cm

Ultra-Superficial Observation <2mm

Ultra-Slow velocity detection <2mm/s

Ultra-High velocity detection >40m/s

(probe dependable)


FASTER

Boots up in approx. 1min

Shutdown <12s

Still image and cine can be saved in 1s

Instant switch between different modes & measurements


LARGER

Large storage size (10 thousand’s of images and cine’s)


MORE CONNECTABLE

Intelligent patient’s data management

SonoDocking, DVI-1, Foot Switch, Video-out, Remote, S-Video

Wifi-compatible

USB 3.0

DIACOM: Structure report, worklist, storage, print


SMARTER

AIO (Automatic Image Optimization for B mode & D mode)

Auto Measurement: Auto IMT, Auto NT, Auto Trace for PW

User defined workflow

Auto-ambient adjustment tailored to indoor & outdoor users

Super Needle enhances the needle display without distortion of the needle

HIP Graf for orthotics diagnosis for paediatric hip scanning


GREENER

SSD for lower power consumption

Standby mode to save energy

Auto ambient adjustment to save battery life

Low heat & noise design

Up to 1 week battery life in standby mode

Up to 2hours of continuous use in active mode



PERFORMANCE

Real Time Panoramic provides more anatomic information of muscle and tendons

Super Needle enhances the image without distortion of the needle

Elastography evaluates changes in muscle stiffness for joint pain and injury.

Comprehensive cardiac measurement packages: Semi-auto Simpson, PISA

Customizable cardiac measurement workflow

Q-beam

Q-flow

Q-image

FHI

X-Contrast



Standard Configuration

Main Unit & probe of choice



Optional

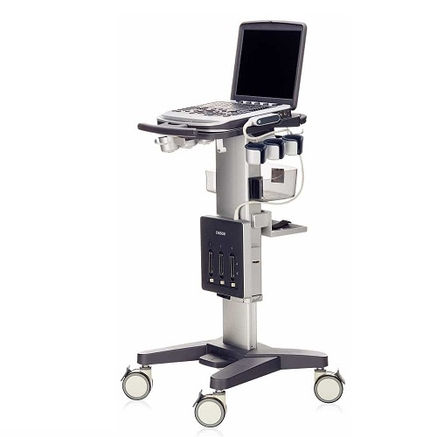

Trolley with 3 Probe Connectors, Anti-theft Lock, Accessory Basket, Basket, Printer Socket, Pneumatic Height Adjustable

WiFi

Larger SSD

ECG



Probe Options

C3-V     3.0 MHz Convex probe

MC3-V  3.0 MHz Micro-convex probe

MC6-V  6.0 MHz Micro-Convex probe

L7-V     4.0 MHz-15.0 MHz Linear probe (128 elements, 40mm)

L12-V    7.0 MHz-18.0 MHz Linear probe (128 elements, 40mm)

L8M5-V 5.0 MHz-14.0 MHz Linear probe (192 elements, 50mm)

L8M-V   4.0 MHz-15.0 MHz Linear probe (192 elements, 40mm)

P2-V     2.5 MHz Phased array probe (Adult)

P5-V     5.3 MHz Phased array probe (Pediatric)

L7V-V   7.5 MHz Linear Rectal Probe L7V-V

R7-V     7.5 MHz transrectal probe



Warranty: 24 months, Optional: 3 years, 5 years

For more information and to confirm specifications, please contact us to request a brochure.
