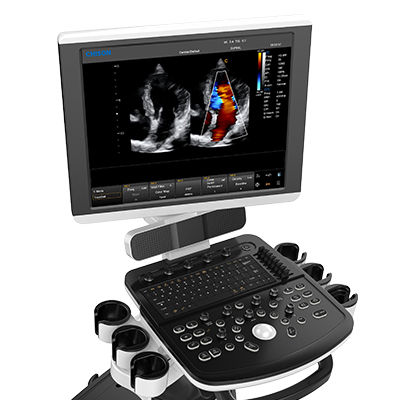

Chison QBit 7

The Chison QBit 7 is a Cart System Ultrasound machine offering excellent quality imaging and ultra-mobility allowing for versatile diagnostic solutions with intelligent workflow, simplified keyboard, advanced 4D technology including Virtual HD and Depth View. Qbit7 features breakthrough new technology with FHI, X-contrast, Q-flow, Q-Beam and Q-image.



Applications: Abdominal, OB / GYN, Vascular, MSK, Small Parts, Urology, Paediatric, Cardiac



Features

19” LED Screen

Screen Foldable: 90°

Horizontal rotation 45°

6 USB Ports

Built-in Battery 80min



Standard Configuration

QBit 7 standard configuration includes:

Main unit with 19" high resolution LCD monitor+4 probe connectors

320G hard disk; DVD-R/W and 6 USB ports

4D module

B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directional PD, Instant Triplex, Duplex, Quadplex, Trapezoidal, Chroma B&M&PW

Automatic PW trace and measurement in real time

Super Image module: Tissue harmonic, Multiple Compound Imaging, SRA (Speckle Reduction Algorithm),X-contrast,Q-beam,Q-flow

Q-Image (intelligent image optimization)

Measurement & calculation software packages: General, OB&GYN, Cardiac



Optional

4D package(4.5 MHz 4D volume probe V4C40L + 4D software)

4D software license

4D License free trial

Virtual HD

Virtual HD Free Trial

IMT

Extended Cardiac Package: ECG License, CW, Free Steering M, Color M, TDI

Stress Echo

Curved Panoramic View

Elastography

2D steer

Super Needle

DICOM 3.0

Battery

ECG Lead

Foot-switch

SONY UP-X898MD B&W Video Printer



Probe Options

D3C60L            3.5 MHz Convex probe

D3C20L            3.0MHz Micro convex probe

D5C20L            5.0MHz Micro convex probe

D6C15L            6.0MHz Micro convex probe

D7L40L             5.0-12.0 MHz Linear probe

D12L40L           7.0-18.0 MHz Linear probe

D7L60L             4.0-12.8 MHz Linear probe (60mm)

D6C12L            6.0MHz Trans-vaginal probe

D7C10L            7.5 MHz Trans-vaginal probe

D3P64L            3.0 MHz Phased array probe (Adult)

D6P64L            6.0 MHz Phased array probe (Pediatric)

D7L40L-REC     7.5MHz Trans-rectal probe

V4C40L             4.0MHz Volume probe



Warranty: 24 months, Optional: 3 years, 5 years

TGA Registered: Yes

For more information and to confirm specifications, please contact us to request a brochure.
