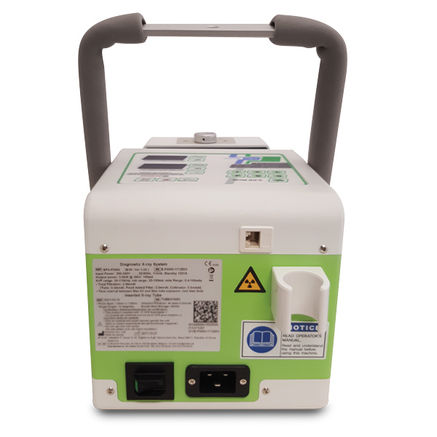

The Ecotron EPX-F2400 is a compact 2.4kW Portable X-Ray Generator suitable for veterinary mobile use, weighing in at only 11Kg and with 100kV and 40mA range puts it ahead of most of the competition in this weight range.

Key Features
Provide high resolution imaging at lower dosages.
Durable design with solid body.
Soft Touch Controls with Digital displays.
Calibrated cassette size indicator dials
Available with Inverted control panel for table use.
Two stage dynamic, Auto line compensation.
Easy access to DR systems.
Dual Integrated Laser Pointer.
Wired handswitch
6m power cord
Wireless/Wire PC interface(Optional)

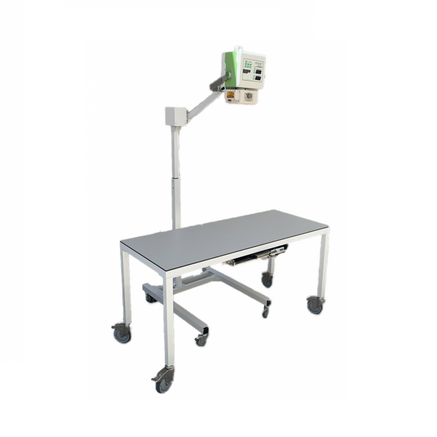

EMS-1000 or EMS-H Stand (Optional)
Podoblock Stat-X Stand Range (Optional)
Podoblock JiXtr Portable X-Ray Generator(Optional)



Maximum Output Power: 2.4kW
Generator Frequency: 70kHz
kV Range: 40-100kV in 1kV steps
mA Range: 12-30mA
mAs Range: 0.4-100mAs
Focal Spot: 1.2mm x 1.2mm
Target Angle: 16°
Anode Heat Storage: 50kHU
Input Voltage: 110V/230V
Phase/Frequency: Single/50-60Hz
Dimensions: approx 335x153x170mm
Machine Weight: approx 11Kg
Shipping Weight: approx 22Kg


For more information and to confirm specifications, please contact us to request a brochure.
