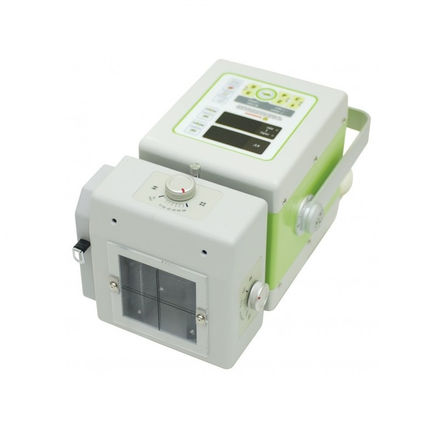

The Ecotron EPX-F1600 is a compact 1.6kW is a Portable X-Ray Generator suitable for veterinary mobile use, weighing in at only 6.8Kg and with 90kV and 30mA range puts it ahead of most of the competition in this weigh range.

Key Features
Provide high resolution imaging at lower dosages.
Durable design with solid body.
Soft Touch Controls with Digital displays.
Calibrated cassette size indicator dials
Available with Inverted control panel for table use.
Two stage dynamic, Auto line compensation.
Easy access to DR systems.
Dual Integrated Laser Pointer.
Wired hand switch
6m power cord
Wireless/Wire PC interface(Optional)
EMS-1000 or EMS-H Stand (Optional)
Podoblock Stat-X Stand Range (Optional)
Podoblock JiXtr Portable X-Ray Generator(Optional)



Maximum Output Power: 1.6kW
Generator Frequency: 100kHz
kV Range: 40-90kV in 1kV steps
mA Range: 12-30mA
mAs Range: 0.4-100mAs
Focal Spot: 1.2mm x 1.2mm
Target Angle: 19°
Anode Heat Storage: 10kHU

Input Voltage: 110V/230V
Phase/Frequency: Single/50-60Hz
Dimensions: 335x153x170mm
Machine Weight: approx 6.8Kg
Shipping Weight: approx 20Kg


For more information and to confirm specifications, please contact us to request a brochure.
